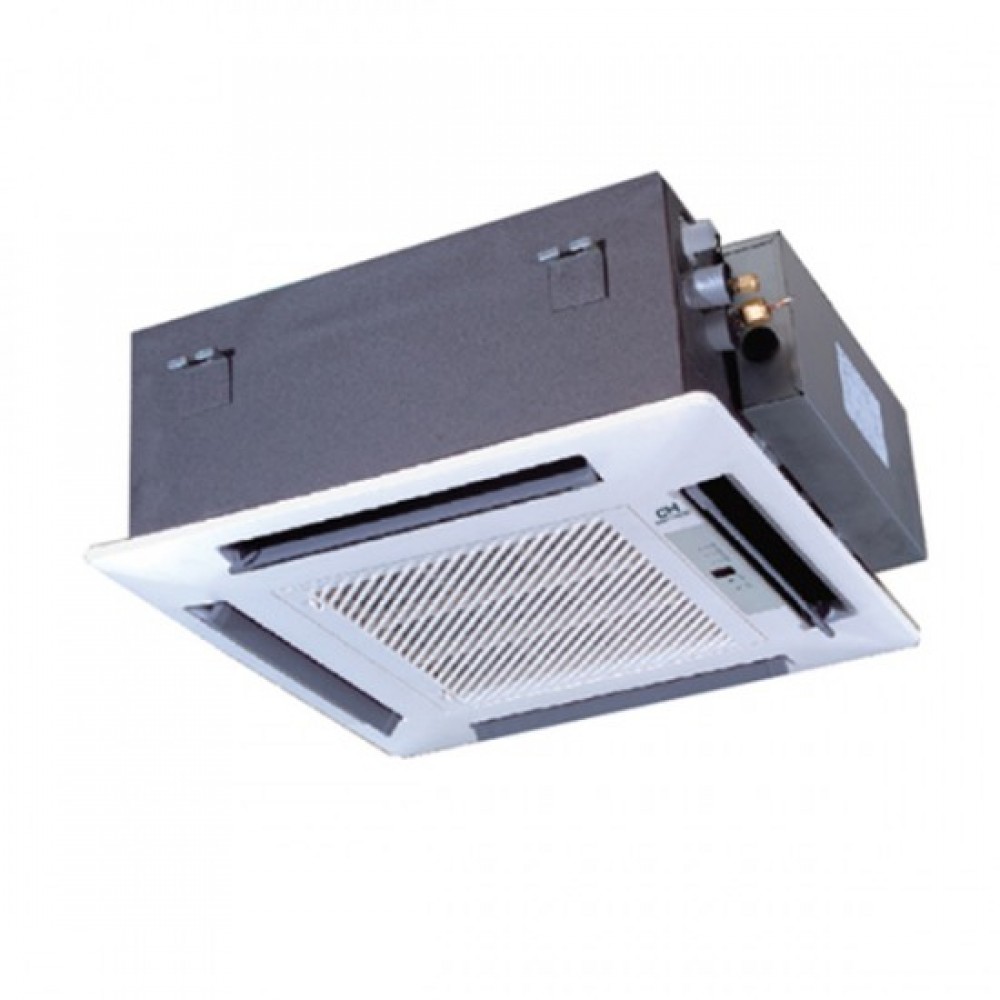

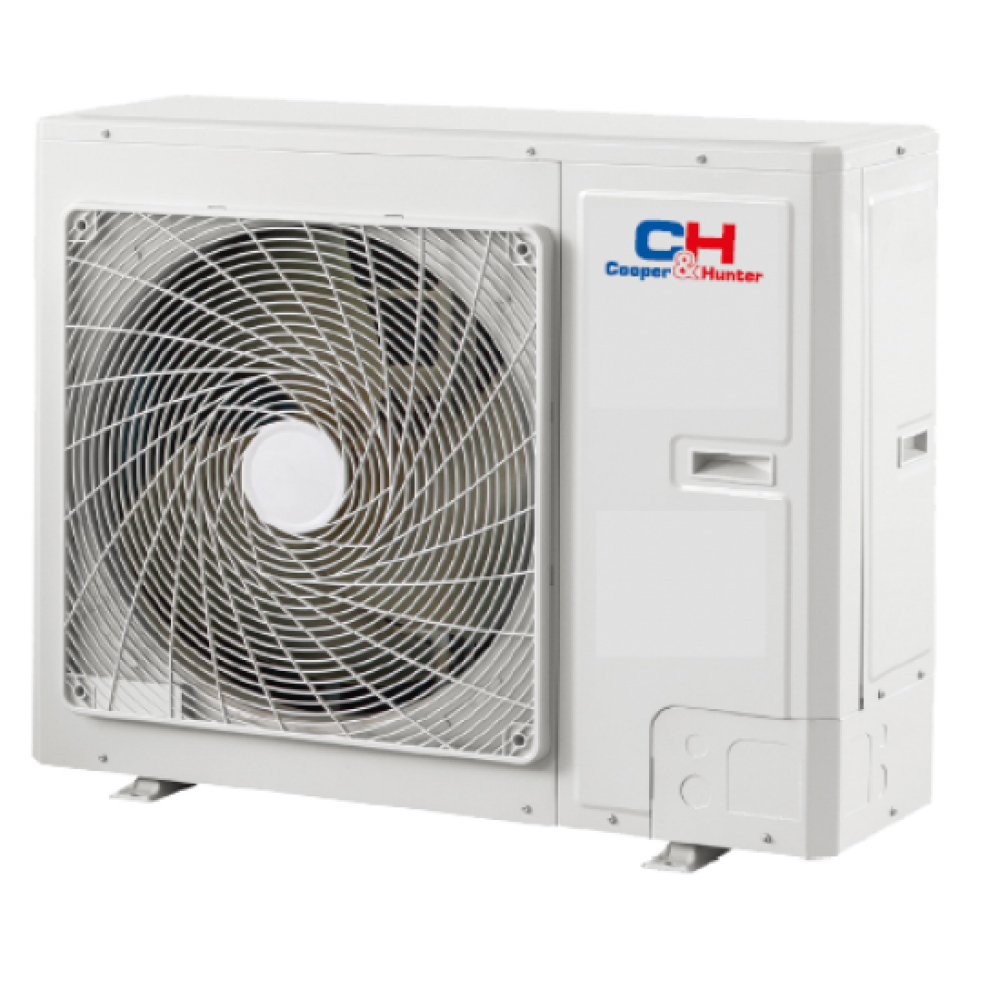

Nordic CH-IC18NK4 set binnenunit en buitenunit 5,0kW 180m3

Capacity/Cold : 5,0 kW
Capacity/Warm : 5,5 kW
Power supply : ~ 220-240V/50Hz/1Ph
Rated input/Cold : 1,6 kW
Rated input/Warm : 1,58 kW
Current rate/Cold : 7,2 A
Current rate/Warm : 7,6 A
Energy efficiency/EER (Cold) : 3,12 kW/kW
Energy efficiency/C.O.P. (Warm) : 3,48 kW/kW
Air capacity : 760 m³/h
Sound-pressure level/indoor unit : 47/46/44/37 dB(А)
Sound-pressure level/outdoor unit : 56 dB(А)
Type of refrigerant coolant : R410А
Refrigerant coolant type : 1.4 kg
Dimensions (width/height/depth)/indoor unit : 596х596х240 mm
Panel of indoor unit : 670х670х50 mm
Dimensions (width/height/depth)/outdoor unit : 955х396х700 mm
Weight/indoor unit : 20 kg
Weight/outdoor unit : 47 kg
Operational temperature range/Cold : -15...+48 °C
Operational temperature range/Warm : -20...+24 °C
Fluid pipeline diameter : 6.35/1/4" mm/inch
Gas pipeline diameter : 12.70/1/2" mm/inch
Maximum pipeline level difference : 15 m
Maximum pipeline length : 20 m
Number of the interblock strands (for control) : 2*0.75 – up to 20 m
Main power supply area : Outdoor
Number of strands (power supply)/indoor unit : 3(ø1.0 mm)
Number of strands (power supply)/outdoor unit : 3(ø2.5 mm)
Factory freon fill (for the number of running meters) : 5 r.m.
Quantity of freon per one running meter (surplus. for one running meter) : 30 gramm/r.m.
SEER : 5.6
SCOP : 3.8
